240Z, 260Z and 280Z Weld in Camber Plates


Create Wishlist

Add Bearing Upper Hat System (Front Only) *

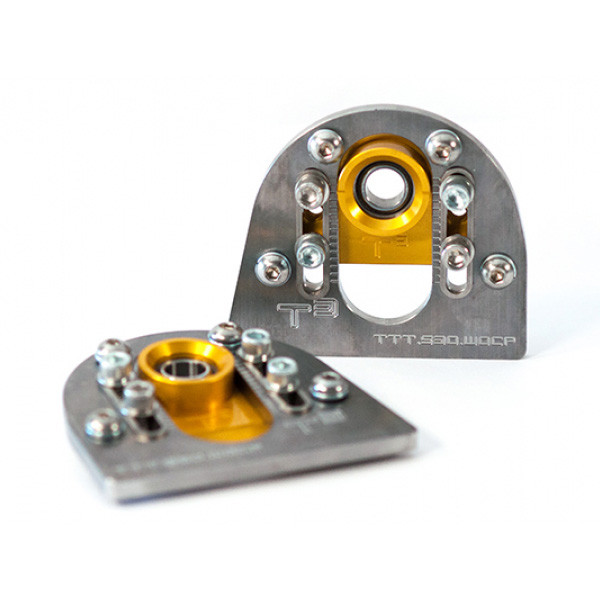

These are our steel weld in camber plates for the 240Z, 260Z and 280Z. Designed with the same profile as the factory upper strut top, you simply cut the factory strut top out, leaving a 1/8" rim and weld these in place, creating a new strut top.

The bearings on these are inserted into the aluminum blocks with what is called an "interference fit". What that means is that the holes that the bearings go into are actually a hair smaller than the bearing going into them. What we do is freeze the bearings and heat up the aluminum blocks to 200 degrees. This makes the bearings shrink a bit and the blocks expand a bit, and then they slip right in!

Once the temperature equalizes on both, those bearings are IN THERE! They will not move around or cause you any "clunking" noises. They are also held in by a keeper ring, to ensure they don't pull out of the bottom of the blocks.

Fits both front and rear of the car. Price is for a pair of the weld in camber plates.

These camber plates will only work with coilovers and if you are running our coilovers, we highly recomended that you run our Camber Plate Upper Hat System in the front. Standard flat hats are required in the rear.

Please let us know in the drop down menu which style strut you will be attaching these camber plates to so that we may provide the correct hardware.

  • Toyota-spec Struts with a 15mm shaft
  • Koni Struts with a 15mm shaft
  • Datsun-spec Struts with a 12mm shaft
  • Non OEM-spec Struts with a 12mm shaft
