T3 Universal Camber Plates
Our Master Designer here at T3 has really come up with something neat this time! We've taken our experience gained from designing Camber Plates over the past 20 years and put all of that knowledge into a pair of DIY Universal Camber Plate's!

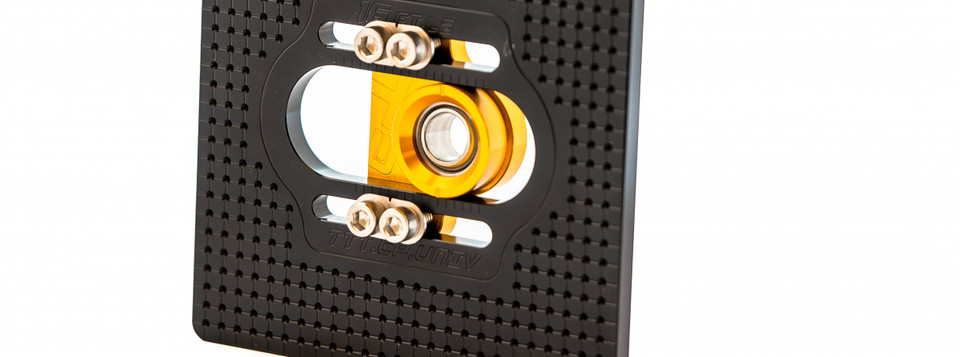

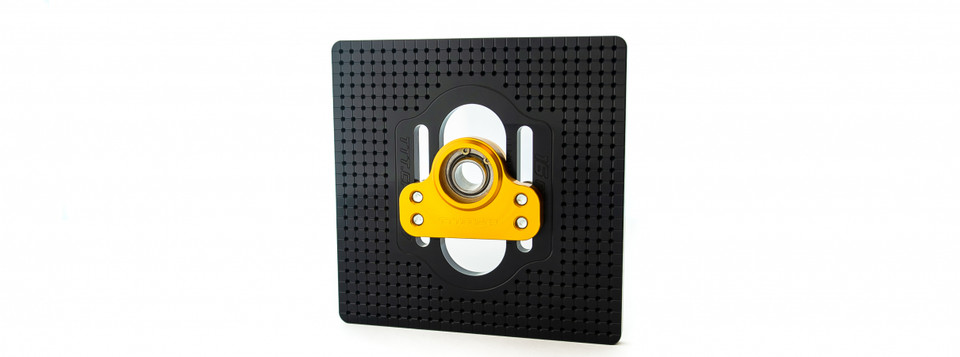

The top side of these plates are engraved with multiple common strut top shapes for an easy cutting guide. The back sides are countersunk every 1/4 inch to make drilling holes for studs easy and precise!

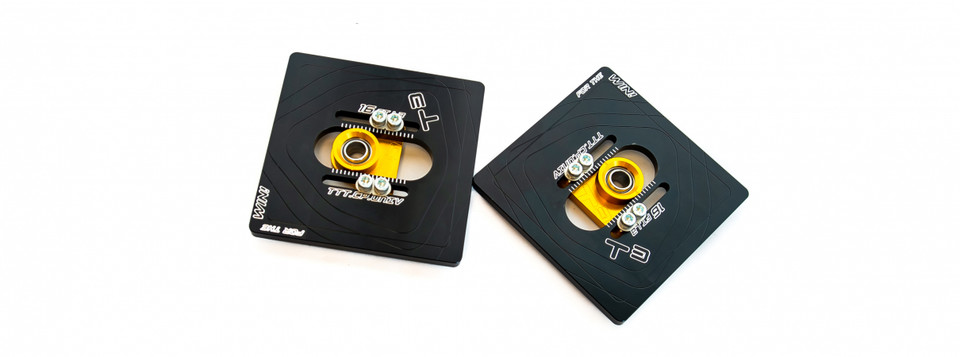

These plates are also reversible with alignment marks on both sides! Show off the countersunk side for a wild look you won't get from any other Camber Plates!
The bearings on these are inserted into the aluminum blocks with what is called an "interference fit". What that means is that the holes that the bearings go into are actually a hair smaller than the bearing going into them. What we do is freeze the bearings and heat up the aluminum blocks to 200 degrees. This makes the bearings shrink a bit and the blocks expand a bit, and then they slip right in!
Once the temperature equalizes on both, those bearings are IN THERE! They will not move around or cause you any "clunking" noises. They are also held in by a keeper ring, to ensure they don't pull out of the bottom of the blocks.
If you are running coilovers, you'll want to check out our Camber Plate Upper Hat System for 2.5" coilovers for use with our T3 camber plates! These are absolutely necessary to properly mate the camber plates to coilovers.
