Evolved Camber Plates for the AE86


Create Wishlist

Add Bearing Upper Hat System *

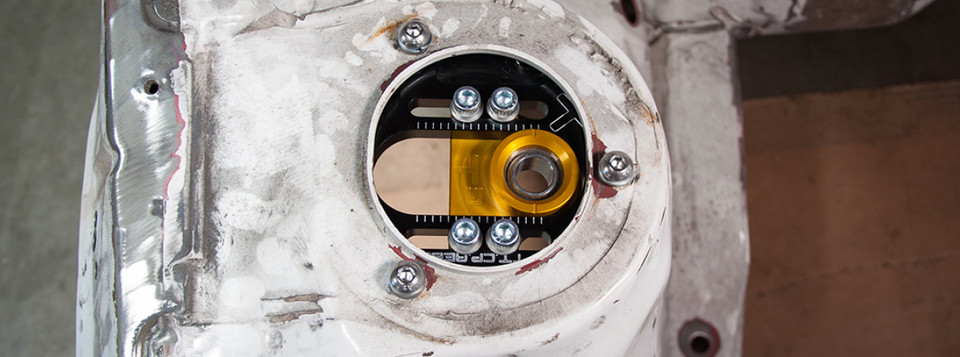

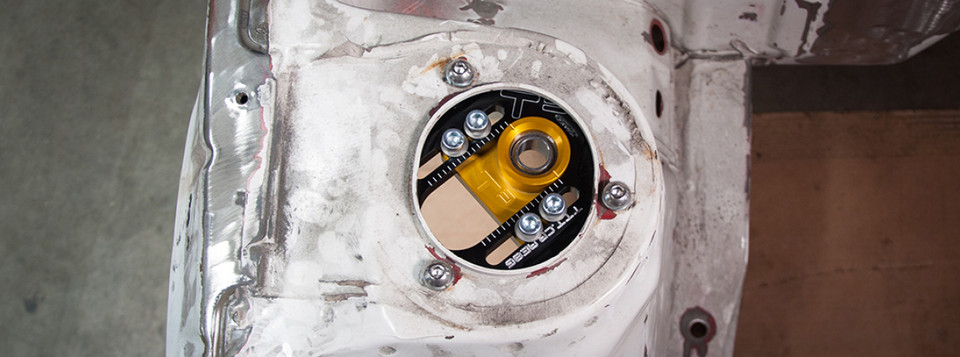

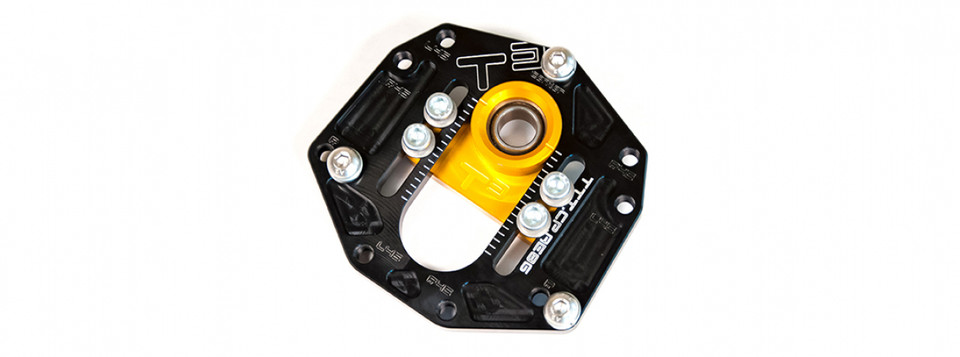

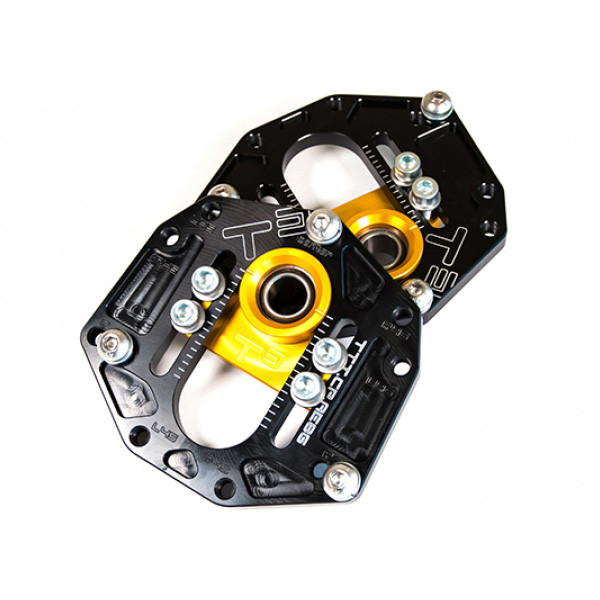

Introducing our new Evolved Camber Plates for the AE86! We've updated the design of our original Camber Plates to now allow for caster adjustment as well! You can install them as normal camber plates or rotate them 45 degrees to benefit from the new caster adjustment feature!!!

The bearings on these are inserted into the aluminum blocks with what is called an "interference fit". What that means is that the holes that the bearings go into are actually a hair smaller than the bearing going into them. What we do is freeze the bearings and heat up the aluminum blocks to 200 degrees. This makes the bearings shrink a bit and the blocks expand a bit, and then they slip right in!

Once the temperature equalizes on both, those bearings are IN THERE! They will not move around or cause you any "clunking" noises. They are also held in by a keeper ring, to ensure they don't pull out of the bottom of the blocks.

If you are running coilovers, you'll want to check out our Camber PlateĀ Upper Hat System for 2.5" coilovers for use with our T3 camber plates! These are absolutely necessary to properly mate the camber plates to coilovers.
