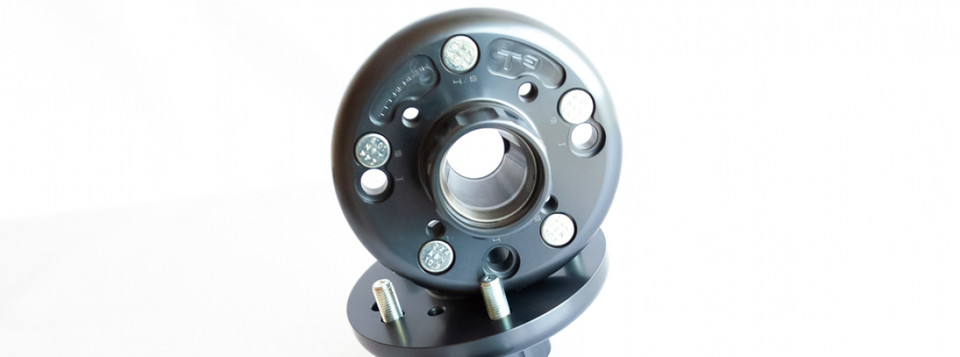

Our billet AE86 hubs are now availalbe in a dual 4 lug, 5 lug layout! These are direct replacements for the facotory units, and weigh in at 2lb's lighter EACH than the factory steel units.

These bolt all regular AE86 rotors to the backside and work great with our big brake kit as well. You can use these in 4x114.3 or 5x114.3 layouts.

Machined from solid billet 6061 aluminum and grey anodized for durability.

Comes with grade 10.9 bolt studs in factory 12x1.5 thread pitch.

Available with standard length studs or extra long racing studs

Comes with all races pressed in and a full set of new bearings.

Center caps included.

Front and rear mounting faces are in the exact same postion as the factory AE86 hubs so no special offsets are required to run these.

Although the hubs are convertible from 4 lug to 5 lug, please choose how you'd like them set up in the drop down menu when you order, so that we can send them ready for you to bolt on!



$450.00
Technical
  • 6061 Aluminum
  • grey Anodized
  • 5 x 114.3 AND 4x114.3 Bolt pattern
  • Grade 10.9 Studs
  • Center Caps Included
  • New Races and Bearings
